prometheus_grafana监控环境搭建

背景

对一些 需要复现的客户问题方便监控占用资源是否异常。

复现

使用metallb 进行域名配置，ingress-nginx进行外部IP暴露，所有应用使用一个ip+多域名

配置prometheus+grafana

下载配置文件进行配置

helm pull prometheus-community/kube-prometheus-stack –untar

修改配置中：

主要修改了

  1. 启动参数
  2. 镜像版本
  3. 镜像启动的worker指定

启动

  1. install

    helm install yzw ./kube-prometheus-stack -n yzw –create-namespace

  2. upgrade

    helm upgrade yzw kube-prometheus-stack -n yzw -f kube-prometheus-stack/values.yaml

  3. uninstall

    helm uninstall yzw -n yzw

nginx 域名代理

  1. grafana配置文件
[root@k8s-master deploy-yaml]# cat ingress-grafana.yaml
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: grafana-ingress
  namespace: yzw
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /   # 可选，看路径转发需求
spec:
  ingressClassName: nginx   # 必须指定，匹配 ingress-nginx-controller
  rules:
    - host: grafana.yzw.com
      http:
        paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name: yzw-grafana
              port:
                number: 80
  1. prometheus配置文件
    [root@k8s-master deploy-yaml]# cat ingress-prometheus.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: prometheus-ingress
  namespace: yzw
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /   # 可选，根据路径转发需求
spec:
  ingressClassName: nginx   # 必须指定，匹配 ingress-nginx-controller
  rules:
    - host: prometheus.yzw.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: yzw-kube-prometheus-stack-prometheus
                port:
                  number: 9090

  2. 域名配置

    在dns域名服务器进行ip绑定或 在本机的hosts进行配置

    具体要绑定的ip 在master节点查询

[root@k8s-master deploy-yaml]# kubectl get svc -n ingress-nginx
NAME                                 TYPE           CLUSTER-IP       EXTERNAL-IP    PORT(S)                      AGE
ingress-nginx-controller             LoadBalancer   10.101.157.109   10.130.0.180   80:30917/TCP,443:32002/TCP   2d21h
ingress-nginx-controller-admission   ClusterIP      10.107.139.153   <none>         443/TCP                      2d21h

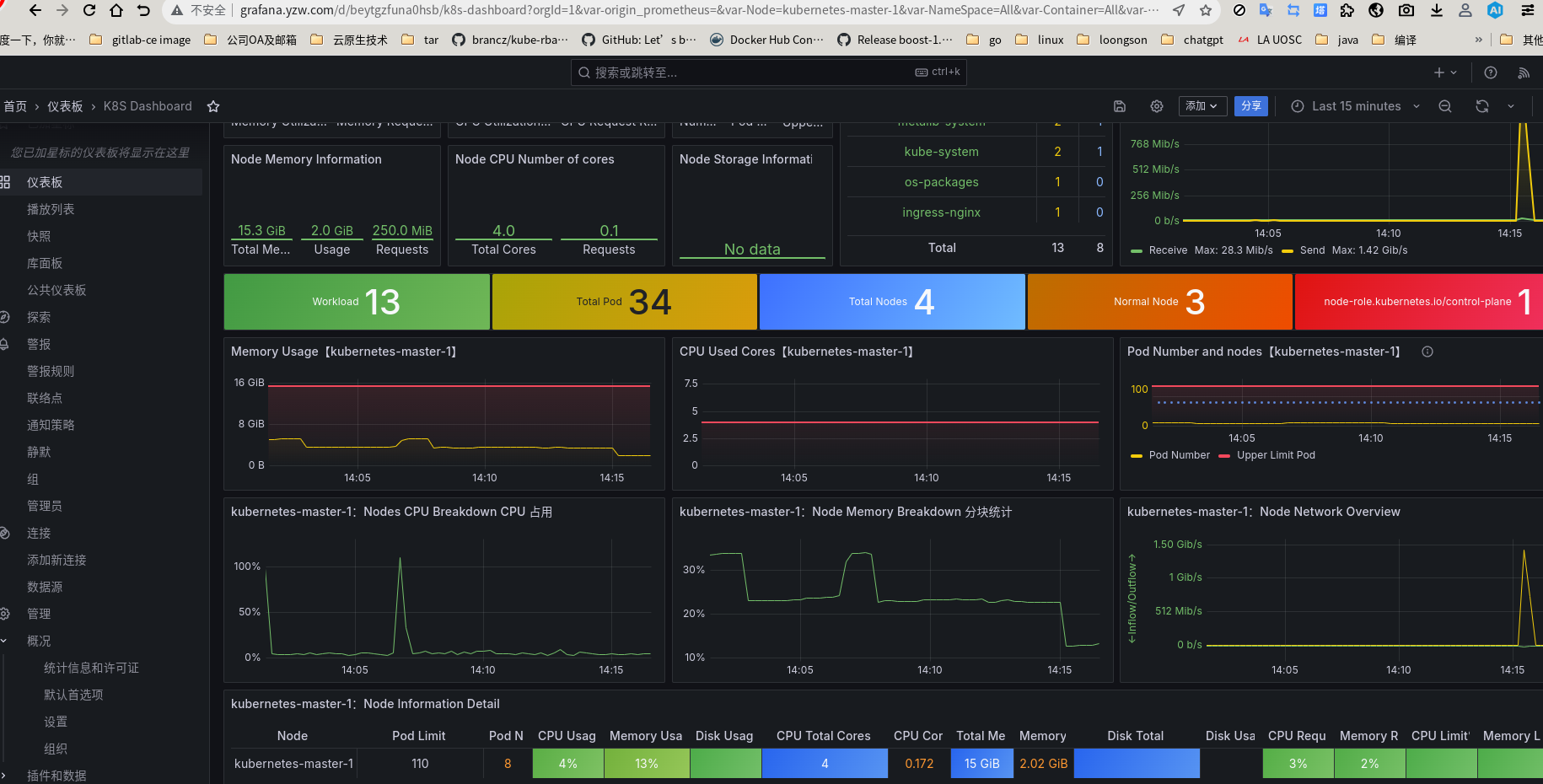

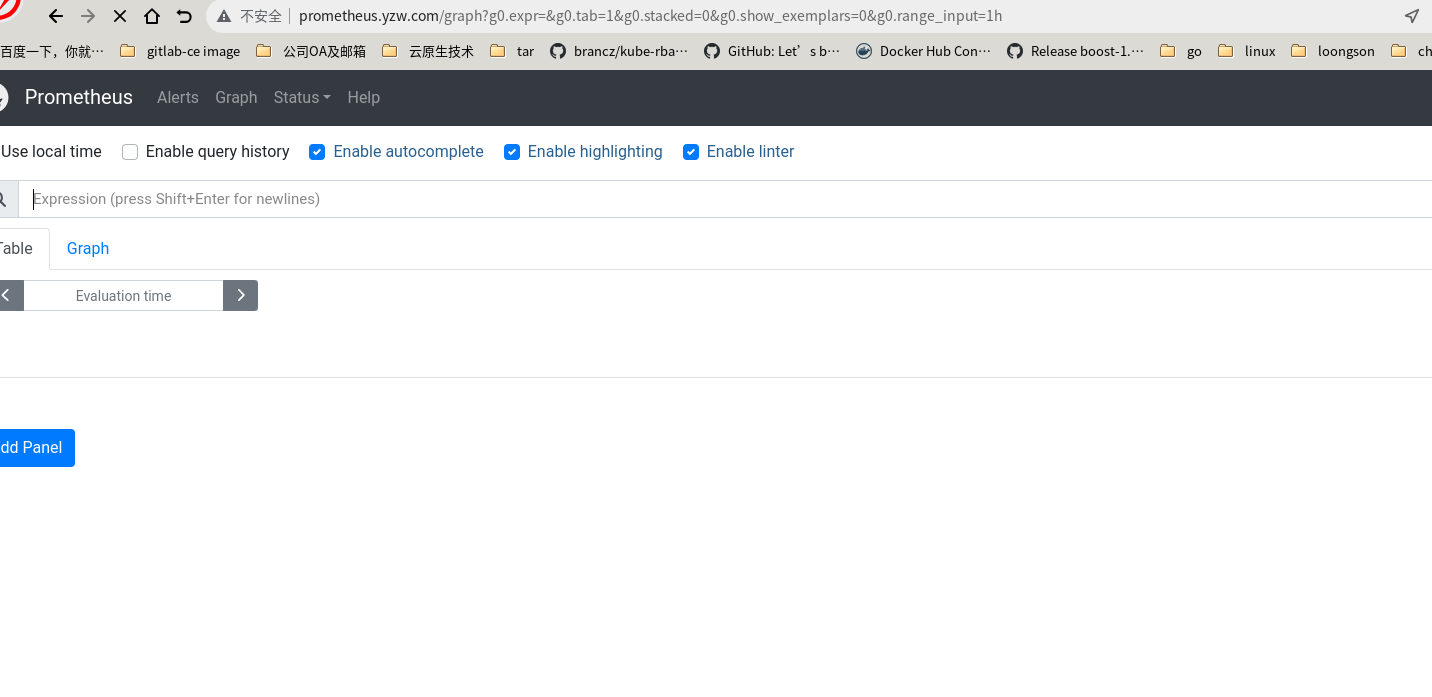

  1. 访问

PVC 配置

为了将监控数据持久化，需要配置本地的PVC

  1. 在这里考虑将一台机器单独作为storage机器，使用nfs的方式进行挂载
mkdir /home/cloud-pv
dnf install -y nfs-utils
echo "/home/cloud-pv *(rw,sync,no_root_squash)" >> /etc/exports
 systemctl enable --now nfs-server
exportfs -a
#如果nfs端的机器端口未开放也无法被挂载，需要配置防火墙放行22端口
firewall-cmd --permanent --add-service=nfs
firewall-cmd --reload
systemctl start firewalld
  1. 创建对grafana和promu的pv crd文件
    [root@k8s-master deploy-yaml]# cat pv.yaml
apiVersion: v1
kind: PersistentVolume
metadata:
  name: grafana-pv
spec:
  capacity:
    storage: 10Gi          # 你需要的空间大小
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: manual
  hostPath:
    path: /home/cloud-pv/grafana   # 节点本地目录
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: prometheus-pv
spec:
  capacity:
    storage: 20Gi          # Prometheus 通常需要更大
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  storageClassName: manual
  hostPath:
    path: /home/cloud-pv/prometheus

    pv 配置成功查询：

    [root@k8s-master deploy-yaml]# kubectl get pv
NAME            CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS      CLAIM   STORAGECLASS   VOLUMEATTRIBUTESCLASS   REASON   AGE
grafana-pv      10Gi       RWO            Retain           Available           manual         <unset>                          61s
prometheus-pv   20Gi       RWO            Retain           Available           manual         <unset>                          61s

  2. 修改helm的values.yaml

    在kube-prometheus-stack的values.yaml里，找到 Grafana 和 Prometheus 的存储配置：

    Grafana:

    Prometheus:

    prometheus: prometheusSpec: storageSpec: volumeClaimTemplate: spec: storageClassName: manual accessModes: ["ReadWriteOnce"] resources: requests: storage: 20Gi

  3. 查看grafana 密码

    kubectl –namespace yzw get secrets yzw-grafana -o jsonpath=”{.data.admin-password}” base64 -d ; echo
