prometheus的OOM问题排查
- 问题背景
200台机器规模，uos20系统，内核4.19.
prometheus 版本2.37, 数据采集频率15s，timeout报警时间10s。
出现问题：当prometheus实际占用内存达到25g左右频繁重启(虚拟内存1T)
- 问题分析
2.1 复现及简单分析
根据客户反馈信息及prometheus特性分析：
- prometheus.yml 配置的内存限制在100g
- prometheus机制是每2小时触发一次高并发大规模的数据落盘，此时会调用golang的mmap机制
- 节点的物理内存在256g
- 虚拟内存占用很高，在800g-1000g之间
- 同样配置下x86没有出现OOM问题，x86操作系统是rocky 9.4 内核版本5.14
由于客户环境难以访问，先对部署的测试环境的OOM进行分析，分析堆栈信息可知是由于达到了100g内存的使用限制导致预期内的内存溢出。
[四 4月 17 18:48:52 2025] Memory cgroup stats for /kubepods.slice/kubepods-burstable.slice/kubepods-burstable-podb0b4b9ab_69ac_45c9_ba1d_25c0bc5c9e0d.slice/cri-containerd-56a6cbd9389e0c909cd4d8cf65e0b73dc93818913f26807533eb2bca82280f1a.scope: cache:8448KB rss:104844432KB rss_huge:0KB shmem:0KB mapped_file:5280KB dirty:0KB writeback:0KB swap:0KB workingset_refault_anon:0KB workingset_refault_file:80994672KB workingset_activate_anon:0KB workingset_activate_file:0KB workingset_restore_anon:0KB workingset_restore_file:0KB workingset_nodereclaim:0KB inactive_anon:104844432KB active_anon:0KB inactive_file:4752KB active_file:0KB unevictable:0KB
[四 4月 17 18:48:52 2025] Tasks state (memory values in pages):
[四 4月 17 18:48:52 2025] [ pid ] uid tgid total_vm rss pgtables_bytes swapents oom_score_adj name
[四 4月 17 18:48:52 2025] [1578890] 65535 1578890 56 1 98304 0 -998 pause
[四 4月 17 18:48:52 2025] [2983827] 0 2983827 16477927 6558421 66732032 0 961 prometheus
[四 4月 17 18:48:54 2025] oom_reaper: reaped process 2983827 (prometheus), now anon-rss:0kB, file-rss:0kB, shmem-rss:0kB
[四 4月 17 19:35:04 2025] prometheus invoked oom-killer: gfp_mask=0x6000c0(GFP_KERNEL), nodemask=(null), order=0, oom_score_adj=961
[四 4月 17 19:35:04 2025] prometheus cpuset=cri-containerd-3306c4278822cedfcaffcddb48647aeaf3d47ed4a1948eb70f03c13ea24d8174.scope mems_allowed=0-1
[四 4月 17 19:35:04 2025] CPU: 10 PID: 3347273 Comm: prometheus Kdump: loaded Not tainted 4.19.0-91.82.152.28.1.tmp.20240925114625.uelc20.loongarch64 #1
[四 4月 17 19:35:04 2025] Hardware name: LOONGSON Dabieshan/Loongson-LS2C50C2, BIOS Loongson UEFI (3C50007A2000_C2) V4.2.0-Dual 09/09/24 15:48:39
[四 4月 17 19:35:04 2025] Stack : 9000101f4607fa88 90000000012a36c0 9000101f4607c000 9000101f4607f9b0
[四 4月 17 19:35:04 2025] 0000000000000000 0000000000000000 0000000000000000 900000000232a451
[四 4月 17 19:35:04 2025] 900000000232a449 9000000002388a10 6572617764726148 39333a38343a3531
[四 4月 17 19:35:04 2025] ffffffffffffffff ffffffffffffffff 0000000000000006 0000000000000007
[四 4月 17 19:35:04 2025] 9000000009400b50 0000000000000001 0000000000001087 0000000000000004
[四 4月 17 19:35:04 2025] 0000000000000000 0000000007228000 9000003fec179000 0000000000000000
[四 4月 17 19:35:04 2025] ffff800000000000 9000101f4607f9b0 0000000000000000 900000000186f490
[四 4月 17 19:35:04 2025] 9000000001a31140 0000000000000001 9000101f4607fc18 0000000000000001
[四 4月 17 19:35:04 2025] 9000000000209c5c 000000d7efea3ff8 00000000000000b0 0000000000000007
[四 4月 17 19:35:04 2025] 0000000000000001 0000000000071c1c 0000000000020000 0000000000000000
[四 4月 17 19:35:04 2025] ...
[四 4月 17 19:35:04 2025] Call Trace:
[四 4月 17 19:35:04 2025] [<9000000000209c5c>] show_stack+0x9c/0x190
[四 4月 17 19:35:04 2025] [<90000000012a36bc>] dump_stack+0xa4/0xdc
[四 4月 17 19:35:04 2025] [<90000000012990d0>] dump_memcg_header+0x1c/0x64
[四 4月 17 19:35:04 2025] [<90000000003c6a84>] oom_kill_process+0x394/0x3a0
[四 4月 17 19:35:04 2025] [<90000000003c75f4>] out_of_memory+0x1f4/0x600
[四 4月 17 19:35:04 2025] [<9000000000475aa4>] mem_cgroup_out_of_memory+0x114/0x160
[四 4月 17 19:35:04 2025] [<900000000047dbf4>] try_charge+0x814/0x880
[四 4月 17 19:35:04 2025] [<90000000004805cc>] mem_cgroup_charge+0xac/0x290
[四 4月 17 19:35:04 2025] [<9000000000417188>] handle_mm_fault+0x1078/0x1b20[四 4月 17 19:35:04 2025] [<90000000012b15b0>] do_page_fault+0x170/0x380
根据日志可以看到rss:104844432KB 使用的实际内存已经超过了100g。
与客户沟通，发现测试环境下出现的该OOM与实际现象不同。
2.2 问题分析
2.2.1 根据prometheus社区的反馈，在其他架构机器下也会出现oom现象，怀疑是否由于OOM瞬间请求了大量内存，但容器重启后没有保存现场导致。
实验：

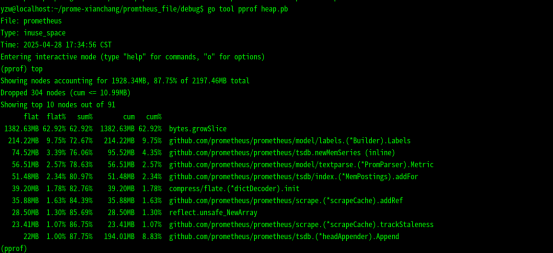

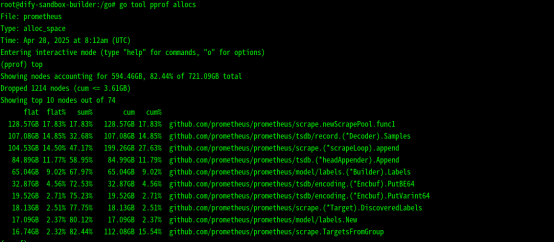

使用golang的调试分析工具pprof 分析崩溃前后的内存使用情况及堆情况，具体如下：
结论：根据内存历史占用的情况来看，一共占用过700多g的内存，但是这是prometheus占用内存的总和，不足以说明由于物理内存不足导致的prometheus重启。
2.2.2 现场信息分析
远程查看客户机器的dmesg缓冲区信息，仅有最近一小时的内容，且由于现场环境不好修改，查看systemd日志及/var/log/messages来获取更多信息。

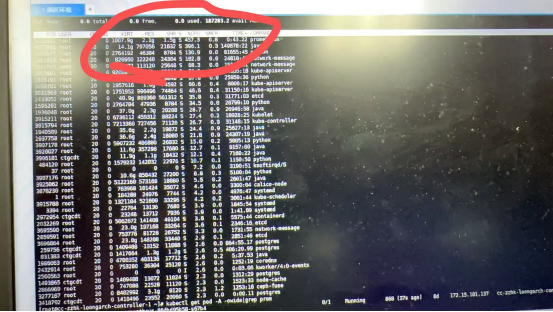

根据现场环境看到出现的OOM现象由java进程引起，再查看现场环境与java进程相关的服务，看到zookeeper服务调用了prometheus，猜想是否由于zookeeper服务调用java进程申请内存失败时 prometheus在监控zookeeper时通同样需要申请内存导致oom。
再次查看测试环境的OOM，环境内的OOM分为两类，分别是由于达到prometheus限制100g内存分配导致的OOM和java程序达到占用上限导致的OOM
现场OOM只有java引起的OOM。下面分别是上述的两类OOM日志。
- 测试环境中prometheus导致的OOM日志
四 4月 17 22:43:41 2025] prometheus invoked oom-killer: gfp_mask=0x6000c0(GFP_KERNEL), nodemask=(null), order=0, oom_score_adj=961
[四 4月 17 22:43:41 2025] prometheus cpuset=cri-containerd-ca3cb3d16034bd31d742d812a46e765f1781e081d747eb9ba2e715895082196e.scope mems_allowed=0-1
[四 4月 17 22:43:41 2025] CPU: 8 PID: 4112310 Comm: prometheus Kdump: loaded Not tainted 4.19.0-91.82.152.28.1.tmp.20240925114625.uelc20.loongarch64 #1
[四 4月 17 22:43:41 2025] Hardware name: LOONGSON Dabieshan/Loongson-LS2C50C2, BIOS Loongson UEFI (3C50007A2000_C2) V4.2.0-Dual 09/09/24 15:48:39
[四 4月 17 22:43:41 2025] Stack : 9000002e502679d8 90000000012a36c0 9000002e50264000 9000002e50267900
[四 4月 17 22:43:41 2025] 0000000000000000 0000000000000000 0000000000000000 900000000232a451
[四 4月 17 22:43:41 2025] 900000000232a449 900000000238c750 6572617764726148 39333a38343a3531
[四 4月 17 22:43:41 2025] ffffffffffffffff ffffffffffffffff 0000000000000006 0000000000000007
[四 4月 17 22:43:41 2025] 9000000009000b50 0000000000000001 00000000000010ff 0000000000000004
[四 4月 17 22:43:41 2025] 0000000000000000 0000000006e28000 9000003fec179000 0000000000000000
[四 4月 17 22:43:41 2025] ffff800000000000 9000002e50267900 0000000000000000 900000000186f490
[四 4月 17 22:43:41 2025] 9000000001a31140 0000000000000001 9000002e50267b68 0000000000000001
[四 4月 17 22:43:41 2025] 9000000000209c5c 000000d7ddbfbae0 00000000000000b0 0000000000000004
[四 4月 17 22:43:41 2025] 0000000000000001 0000000000071c1c 0000000000000000 0000000000000000
[四 4月 17 22:43:41 2025] ...
[四 4月 17 22:43:41 2025] Call Trace:
[四 4月 17 22:43:41 2025] [<9000000000209c5c>] show_stack+0x9c/0x190
[四 4月 17 22:43:41 2025] [<90000000012a36bc>] dump_stack+0xa4/0xdc
[四 4月 17 22:43:41 2025] [<90000000012990d0>] dump_memcg_header+0x1c/0x64
[四 4月 17 22:43:41 2025] [<90000000003c6a84>] oom_kill_process+0x394/0x3a0
[四 4月 17 22:43:41 2025] [<90000000003c75f4>] out_of_memory+0x1f4/0x600
[四 4月 17 22:43:41 2025] [<9000000000475aa4>] mem_cgroup_out_of_memory+0x114/0x160
[四 4月 17 22:43:41 2025] [<900000000047dbf4>] try_charge+0x814/0x880
[四 4月 17 22:43:41 2025] [<90000000004805cc>] mem_cgroup_charge+0xac/0x290
[四 4月 17 22:43:41 2025] [<900000000040f60c>] wp_page_copy+0x26c/0xca0
[四 4月 17 22:43:41 2025] [<9000000000412240>] do_wp_page+0xc0/0x8f0
[四 4月 17 22:43:41 2025] [<9000000000416ce4>] handle_mm_fault+0xbd4/0x1b20
[四 4月 17 22:43:41 2025] [<90000000012b15b0>] do_page_fault+0x170/0x380
[四 4月 17 22:43:41 2025] [<900000000021a0e8>] tlb_do_page_fault_1+0x110/0x128
[四 4月 17 22:43:41 2025] Task in /kubepods.slice/kubepods-burstable.slice/kubepods-burstable-podb0b4b9ab_69ac_45c9_ba1d_25c0bc5c9e0d.slice/cri-containerd-ca3cb3d16034bd31d742d812a46e765f1781e081d747eb9ba2e715895082196e.scope killed as a result of limit of /kubepods.slice/kubepods-burstable.slice/kubepods-burstable-podb0b4b9ab_69ac_45c9_ba1d_25c0bc5c9e0d.slice
[四 4月 17 22:43:41 2025] memory: usage 104857600kB, limit 104857600kB, failcnt 434715
[四 4月 17 22:43:41 2025] kmem: usage 0kB, limit 9007199254740976kB, failcnt 0
[四 4月 17 22:43:41 2025] Memory cgroup stats for /kubepods.slice/kubepods-burstable.slice/kubepods-burstable-podb0b4b9ab_69ac_45c9_ba1d_25c0bc5c9e0d.slice: cache:0KB rss:0KB rss_huge:0KB shmem:0KB mapped_file:0KB dirty:0KB writeback:0KB swap:0KB workingset_refault_anon:0KB workingset_refault_file:0KB workingset_activate_anon:0KB workingset_activate_file:0KB workingset_restore_anon:0KB workingset_restore_file:0KB workingset_nodereclaim:0KB inactive_anon:0KB active_anon:0KB inactive_file:0KB active_file:0KB unevictable:0KB
[四 4月 17 22:43:41 2025] Memory cgroup stats for /kubepods.slice/kubepods-burstable.slice/kubepods-burstable-podb0b4b9ab_69ac_45c9_ba1d_25c0bc5c9e0d.slice/cri-containerd-f6da416f7a38372880f0389b44c417a5a595df570c314fa4be4be0a7a7421da4.scope: cache:0KB rss:0KB rss_huge:0KB shmem:0KB mapped_file:0KB dirty:0KB writeback:0KB swap:0KB workingset_refault_anon:0KB workingset_refault_file:0KB workingset_activate_anon:0KB workingset_activate_file:0KB workingset_restore_anon:0KB workingset_restore_file:0KB workingset_nodereclaim:0KB inactive_anon:0KB active_anon:0KB inactive_file:0KB active_file:0KB unevictable:0KB
[四 4月 17 22:43:41 2025] Memory cgroup stats for /kubepods.slice/kubepods-burstable.slice/kubepods-burstable-podb0b4b9ab_69ac_45c9_ba1d_25c0bc5c9e0d.slice/cri-containerd-ca3cb3d16034bd31d742d812a46e765f1781e081d747eb9ba2e715895082196e.scope: cache:6336KB rss:104846544KB rss_huge:0KB shmem:0KB mapped_file:9504KB dirty:0KB writeback:0KB swap:0KB workingset_refault_anon:0KB workingset_refault_file:81455616KB workingset_activate_anon:0KB workingset_activate_file:8448KB workingset_restore_anon:0KB workingset_restore_file:0KB workingset_nodereclaim:0KB inactive_anon:104845488KB active_anon:0KB inactive_file:4832KB active_file:0KB unevictable:0KB
[四 4月 17 22:43:41 2025] Tasks state (memory values in pages):
[四 4月 17 22:43:41 2025] [ pid ] uid tgid total_vm rss pgtables_bytes swapents oom_score_adj name
[四 4月 17 22:43:41 2025] [1578890] 65535 1578890 56 1 98304 0 -998 pause
[四 4月 17 22:43:41 2025] [4112165] 0 4112165 16559276 6558445 66977792 0 961 prometheus
[四 4月 17 22:43:44 2025] oom_reaper: reaped process 4112165 (prometheus), now anon-rss:0kB, file-rss:0kB, shmem-rss:0kB
[四 4月 17 23:12:33 2025] prometheus invoked oom-killer: gfp_mask=0x6000c0(GFP_KERNEL), nodemask=(null), order=0, oom_score_adj=961
[四 4月 17 23:12:33 2025] prometheus cpuset=cri-containerd-a7609d64f82ed2a6d6363f4fc397b27612d38d98ea399491e07ca4392ae39e2c.scope mems_allowed=0-1[四 4月 17 23:12:33 2025] CPU: 27 PID: 299393 Comm: prometheus Kdump: loaded Not tainted 4.19.0-91.82.152.28.1.tmp.20240925114625.uelc20.loongarch64 #1
- java进程导致的OOM
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: C1 CompilerThre invoked oom-killer: gfp_mask=0x6000c0(GFP_KERNEL), nodemask=(null), order=0, oom_score_adj=-997
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: C1 CompilerThre cpuset=cri-containerd-198301288f1414171589a049d5f75f9e4c871b8b3e5ad5af12051fdcc65da726.scope mems_allowed=0-3
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: CPU: 21 PID: 585614 Comm: C1 CompilerThre Kdump: loaded Not tainted 4.19.0-91.82.152.28.tyy.5.uelc20.loongarch64 #1
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: Hardware name: LOONGSON Dabieshan/Loongson-TD522E0, BIOS Loongson UEFI (3D50007A2000_Td522e0) V4.1.2 08/29/24 10:42:21
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: Stack : 9000000757813a78 90000000012a36c0 9000000757810000 90000007578139a0
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: 0000000000000000 0000000000000000 00000000003182c9 900000000286a450
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: 900000000286a448 900000000287b6c0 6572617764726148 31323a32343a3031
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: ffffffffffffffff ffffffffffffffff 0000000000000006 0000000000000007
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: 9000100080a00b50 0000000000000001 0000000000318d51 0000000000000004
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: 0000000000000000 000010007e2e4000 900000106c16c000 0000000000000000
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: ffff800000000000 90000007578139a0 0000000000000000 900000000186f490
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: 9000000001a31140 0000000000000001 9000000757813c08 0000000000000001
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: 9000000000209c5c 000000ffc50f0000 00000000000000b0 0000000000000004
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: 0000000000000000 0000000000071c1c 0000000000000000 0000000000000000
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: ...
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: Call Trace:
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [<9000000000209c5c>] show_stack+0x9c/0x190
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [<90000000012a36bc>] dump_stack+0xa4/0xdc
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [<90000000012990d0>] dump_memcg_header+0x1c/0x64
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [<90000000003c69a4>] oom_kill_process+0x394/0x3a0
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [<90000000003c7514>] out_of_memory+0x1f4/0x600
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [<90000000004749b4>] mem_cgroup_out_of_memory+0x114/0x160
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [<900000000047cb04>] try_charge+0x814/0x880
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [<900000000047f4dc>] mem_cgroup_charge+0xac/0x290
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [<9000000000416d9c>] handle_mm_fault+0xf9c/0x1a60
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [<90000000012b1630>] do_page_fault+0x170/0x380
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [<900000000021a068>] tlb_do_page_fault_1+0x110/0x128
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: Task in /kubepods.slice/kubepods-pod776b973b_ea34_4ae9_9d79_5b9a2cb363b6.slice/cri-containerd-198301288f1414171589a049d5f75f9e4c871b8b3e5ad5af12051fdcc65da726.scope killed as a result of limit of /kubepods.slice/kubepods-pod776b973b_ea34_4ae9_9d79_5b9a2cb363b6.slice
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: memory: usage 409600kB, limit 409600kB, failcnt 13061
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: memory+swap: usage 409600kB, limit 9007199254740976kB, failcnt 0
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: kmem: usage 0kB, limit 9007199254740976kB, failcnt 0
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: Memory cgroup stats for /kubepods.slice/kubepods-pod776b973b_ea34_4ae9_9d79_5b9a2cb363b6.slice: cache:0KB rss:0KB rss_huge:0KB shmem:0KB mapped_file:0KB dirty:0KB writeback:0KB swap:0KB workingset_refault_anon:0KB workingset_refault_file:0KB workingset_activate_anon:0KB workingset_activate_file:0KB workingset_restore_anon:0KB workingset_restore_file:0KB workingset_nodereclaim:0KB inactive_anon:0KB active_anon:0KB inactive_file:0KB active_file:0KB unevictable:0KB
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: Memory cgroup stats for /kubepods.slice/kubepods-pod776b973b_ea34_4ae9_9d79_5b9a2cb363b6.slice/cri-containerd-56f269fb999210c07ef9cfaff4f50743b0c331aee2b92302289b6c1ed9d51ba9.scope: cache:0KB rss:0KB rss_huge:0KB shmem:0KB mapped_file:0KB dirty:0KB writeback:0KB swap:0KB workingset_refault_anon:0KB workingset_refault_file:0KB workingset_activate_anon:0KB workingset_activate_file:0KB workingset_restore_anon:0KB workingset_restore_file:0KB workingset_nodereclaim:0KB inactive_anon:0KB active_anon:0KB inactive_file:0KB active_file:0KB unevictable:0KB
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: Memory cgroup stats for /kubepods.slice/kubepods-pod776b973b_ea34_4ae9_9d79_5b9a2cb363b6.slice/cri-containerd-198301288f1414171589a049d5f75f9e4c871b8b3e5ad5af12051fdcc65da726.scope: cache:528KB rss:396480KB rss_huge:0KB shmem:0KB mapped_file:0KB dirty:0KB writeback:0KB swap:0KB workingset_refault_anon:0KB workingset_refault_file:141504KB workingset_activate_anon:0KB workingset_activate_file:32208KB workingset_restore_anon:0KB workingset_restore_file:26400KB workingset_nodereclaim:0KB inactive_anon:395552KB active_anon:0KB inactive_file:0KB active_file:0KB unevictable:0KB
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: Tasks state (memory values in pages):
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [ pid ] uid tgid total_vm rss pgtables_bytes swapents oom_score_adj name
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [1916799] 65535 1916799 56 1 98304 0 -998 pause
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [ 585567] 0 585567 148 57 114688 0 -997 sh
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: [ 585588] 0 585588 307156 26597 1196032 0 -997 java
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: oom_kill_process: 1520 callbacks suppressed
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 containerd[2032269]: time="2025-04-14T05:21:34.519809409+08:00" level=info msg="TaskOOM event &TaskOOM{ContainerID:198301288f1414171589a049d5f75f9e4c871b8b3e5ad5af12051fdcc65da726,XXX_unrecognized:[],}"
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 kernel: oom_reaper: reaped process 585588 (java), now anon-rss:0kB, file-rss:0kB, shmem-rss:0kB
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 systemd[1]: cri-containerd-198301288f1414171589a049d5f75f9e4c871b8b3e5ad5af12051fdcc65da726.scope: Succeeded.
Apr 14 05:21:34 cc-zzhk-loongarch-controller-1 systemd[1]: cri-containerd-198301288f1414171589a049d5f75f9e4c871b8b3e5ad5af12051fdcc65da726.scope: Consumed 21min 30.686s CPU time.
b.查看引起OOM的java进程
Apr 14 05:22:27 cc-zzhk-loongarch-controller-1 kernel: audit: type=1300 audit(1744579346.112:420113767): arch=c0000102 syscall=221 success=yes exit=0 a0=aaae3c7050 a1=aaae3c54d0 a2=aaae3a3480 a3=0 items=2 ppid=2180005 pid=2180007 auid=4294967295 uid=0 gid=0 euid=0 suid=0 fsuid=0 egid=0 sgid=0 fsgid=0 tty=(none) ses=4294967295 comm="java" exe="/opt/jdk/jdk8u402-b06/bin/java" key="root_acct"
Apr 14 05:22:27 cc-zzhk-loongarch-controller-1 kernel: audit: type=1321 audit(1744579346.112:420113767): fver=0 fp=0000000000000000 fi=0000000000000000 fe=0 old_pp=00000000a80425fb old_pi=00000000a80425fb old_pe=00000000a80425fb old_pa=0000000000000000 pp=00000000a80425fb pi=00000000a80425fb pe=00000000a80425fb pa=0000000000000000Apr 14 05:22:27 cc-zzhk-loongarch-controller-1 kernel: audit: type=1309 audit(1744579346.112:420113767): argc=12 a0="/opt/jdk/jdk8u402-b06/bin/java" a1="-Dzookeeper.log.dir=/usr/local/zookeeper/bin/../logs" a2="-Dzookeeper.log.file=zookeeper--server-zookeeper-0.log" a3="-cp" a4="/usr/local/zookeeper/bin/../zookeeper-server/target/classes:/usr/local/zookeeper/bin/../build/classes:/usr/local/zookeeper/bin/../zookeeper-server/target/lib/*.jar:/usr/local/zookeeper/bin/../build/lib/*.jar:/usr/local/zookeeper/bin/../lib/zookeeper-prometheus-metrics-3.8.4.jar:/usr/local/zookeeper/bin/../lib/zookeeper-jute-3.8.4.jar:/usr/local/zookeeper/bin/../lib/zookeeper-3.8.4.jar:/usr/local/zookeeper/bin/../lib/snappy-java-1.1.10.5.jar:/usr/local/zookeeper/bin/../lib/slf4j-api-1.7.30.jar:/usr/local/zookeeper/bin/../lib/simpleclient_servlet-0.9.0.jar:/usr/local/zookeeper/bin/../lib/simpleclient_hotspot-0.9.0.jar:/usr/local/zookeeper/bin/../lib/simpleclient_common-0.9.0.jar:/usr/local/zookeeper/bin/../lib/simpleclient-0.9.0.jar:/usr/local/zookeeper/bi
可以看到是zookeeper服务在调用java进程，并且zookeeper还使用了prometheus监控服务，因此猜测：
由于zookeeper服务调用java进程申请内存失败时 prometheus在监控zookeeper时通同样需要申请内存导致oom。
查看测试机器的java进程最近OOM时间和prometheus容器最近一次start时间：
java进程OOM时间（dmesg -T or /var/log/messages or journalctl –no-page查看）
[一 4月 28 10:11:01 2025] Out of memory: Kill process 134320 (java) score 1003 or sacrifice child
prometheus最近一次start时间(kubectl describe pod prometheus-696c87f98f-f44nm -n monitor)
[root@cc-loongarch64-controller-1 ~]# kubectl describe pod prometheus-696c87f98f-f44nm -n monitor
Name: prometheus-696c87f98f-f44nm
Namespace: monitor
Priority: 0
Service Account: prometheus
Node: cc-loongarch64-controller-1/10.40.80.20
Start Time: Fri, 18 Apr 2025 17:38:18 +0800
Labels: app=prometheus
pod-template-hash=696c87f98f
Annotations: cni.projectcalico.org/podIP: 172.15.127.32/32
cni.projectcalico.org/podIPs: 172.15.127.32/32
Status: Running
IP: 172.15.127.32
IPs:
IP: 172.15.127.32
Controlled By: ReplicaSet/prometheus-696c87f98f
Containers:
prometheus:
Container ID: containerd://2680dbb5a408d2c104f7a688f9e292f4a2856bb41a574c0bccb0ef064dcd7d56
Image: ctg.registry.local:5001/ctg/prometheus:2.36.1
Image ID: ctg.registry.local:5001/ctg/prometheus@sha256:e105cc099b94df472dce1bd9cc47c75294b99ff2abb00eeea082d342d59c2540
Port: 8590/TCP
Host Port: 0/TCP
Args:
--storage.tsdb.path=/app/monitor/monitor-desktop/cephfs/prometheus/data
--storage.tsdb.retention.time=30d
--config.file=/app/monitor/monitor-desktop/cephfs/prometheus/prometheus.yml
--web.listen-address=0.0.0.0:8590
--web.enable-lifecycle
State: Running
Started: Mon, 28 Apr 2025 10:11:39 +0800
Last State: Terminated
Reason: Error
Exit Code: 137
Started: Fri, 18 Apr 2025 17:38:20 +0800
Finished: Mon, 28 Apr 2025 10:10:20 +0800
Ready: True
Restart Count: 1
Limits:
cpu: 10
memory: 100Gi
Requests:
cpu: 2
memory: 20Gi
Liveness: tcp-socket :8590 delay=30s timeout=5s period=10s #success=1 #failure=3
Readiness: tcp-socket :8590 delay=30s timeout=5s period=10s #success=1 #failure=3
Environment: <none>
Mounts:
/app/monitor/monitor-desktop/cephfs/prometheus/ from prometheus-dir (rw)
/var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-sflmb (ro)
Conditions:
Type Status
Initialized True
Ready True
ContainersReady True
PodScheduled True
Volumes:
prometheus-dir:
Type: HostPath (bare host directory volume)
Path: /app/monitor/monitor-desktop/cephfs/prometheus
HostPathType:
kube-api-access-sflmb:
Type: Projected (a volume that contains injected data from multiple sources)
TokenExpirationSeconds: 3607
ConfigMapName: kube-root-ca.crt
ConfigMapOptional: <nil>
DownwardAPI: true
QoS Class: Burstable
Node-Selectors: node-role.kubernetes.io/control-plane=
Tolerations: node-role.kubernetes.io/master:NoSchedule op=Exists
node.kubernetes.io/not-ready:NoExecute op=Exists for 90s
node.kubernetes.io/unreachable:NoExecute op=Exists for 90s
Events: <none>
[一 4月 28 10:11:01 2025] Out of memory: Kill process 134320 (java) score 1003 or sacrifice child
Started: Mon, 28 Apr 2025 10:11:39 +0800 结论：可以看到由java进程引发的OOM和prometheus重启时间一致，怀疑是环境内的java进程引发的prometheus崩溃，反馈给客户。 客户确定不是从这个进程崩溃导致，从其他方向排查。
2.2.3 根据上文现象，怀疑是配置文件的内存限制导致，删除现场的limits，让prometheus使用物理内存上限，重启间隔变长，但仍然会触发OOM。
2.2.4 尝试确认是否是prometheus的虚拟内存调度异常导致。
图1. 现场环境图
分析现场及测试环境可知，多次OOM之前均出现virt memory的占用达到了1000G以上，通过对比4.19内核下操作系统虚拟内存地址大小和x86虚拟内存地址大小可知，客户使用的x86对照环境内存地址大小为48位，abi1.0则为40位
40 位虚拟地址空间的大小是1024g
因此编写测试程序：
目的：
尽量占用虚拟内存而不释放，不实际使用
方法：
利用 Go 的 make([]byte, size) 来申请内存，但避免访问内容，只申请虚拟地址空间（VIRT），不让内核分配实际物理页，用并发方式让多个 Goroutine 并行分配不同段加速分配
测试程序如下：
package main
import (
"fmt"
"os"
"sync"
)
const (
totalSize = 2 << 40
chunkSize = 1 << 30
parallel = 8
)
func main() {
var slices [][]byte
var mu sync.Mutex
var wg sync.WaitGroup
chunks := totalSize / chunkSize
perWorker := chunks / parallel
for i := 0; i < parallel; i++ {
wg.Add(1)
go func(worker int) {
defer wg.Done()
for j := 0; j < int(perWorker); j++ {
b := make([]byte, chunkSize)
mu.Lock()
slices = append(slices, b)
count := len(slices)
mu.Unlock()
if count%16 == 0 {
fmt.Fprintf(os.Stderr, "[%d] Allocated virtual: %d GB\n", worker, count)
}
}
}(i)
}
wg.Wait()
fmt.Println("All memory allocated. Press Ctrl+C to exit.")
select {}
}

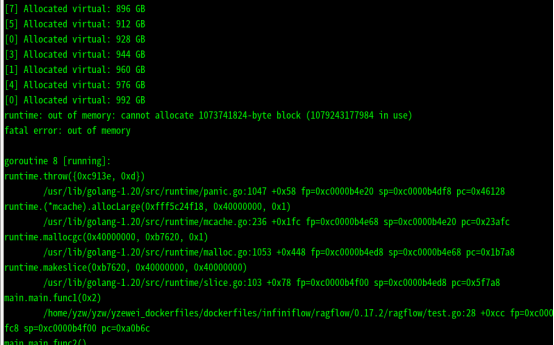

在abi1.0 机器上运行截图：

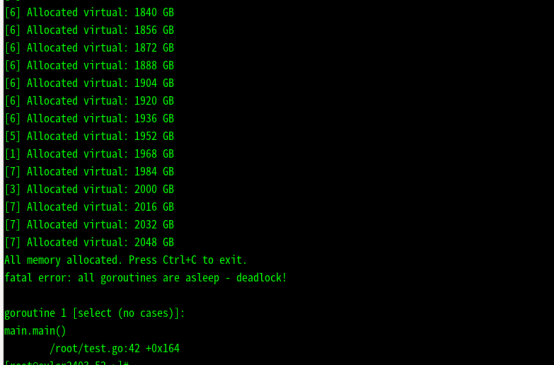

在abi2.0机器上运行截图：
在x86机器上运行截图
结论：可以看到在48位虚拟地址位的操作系统下程序正常被杀死，但在40位操作系统下程序出现了OOM，与客户的问题一致。
- 提出解决方案：
更换操作系统（升级到abi2.0）
由内核组定制内核
客户在应用层限制prometheus的虚拟内存占用（调整数据落盘时间、减少业务量）
